Description

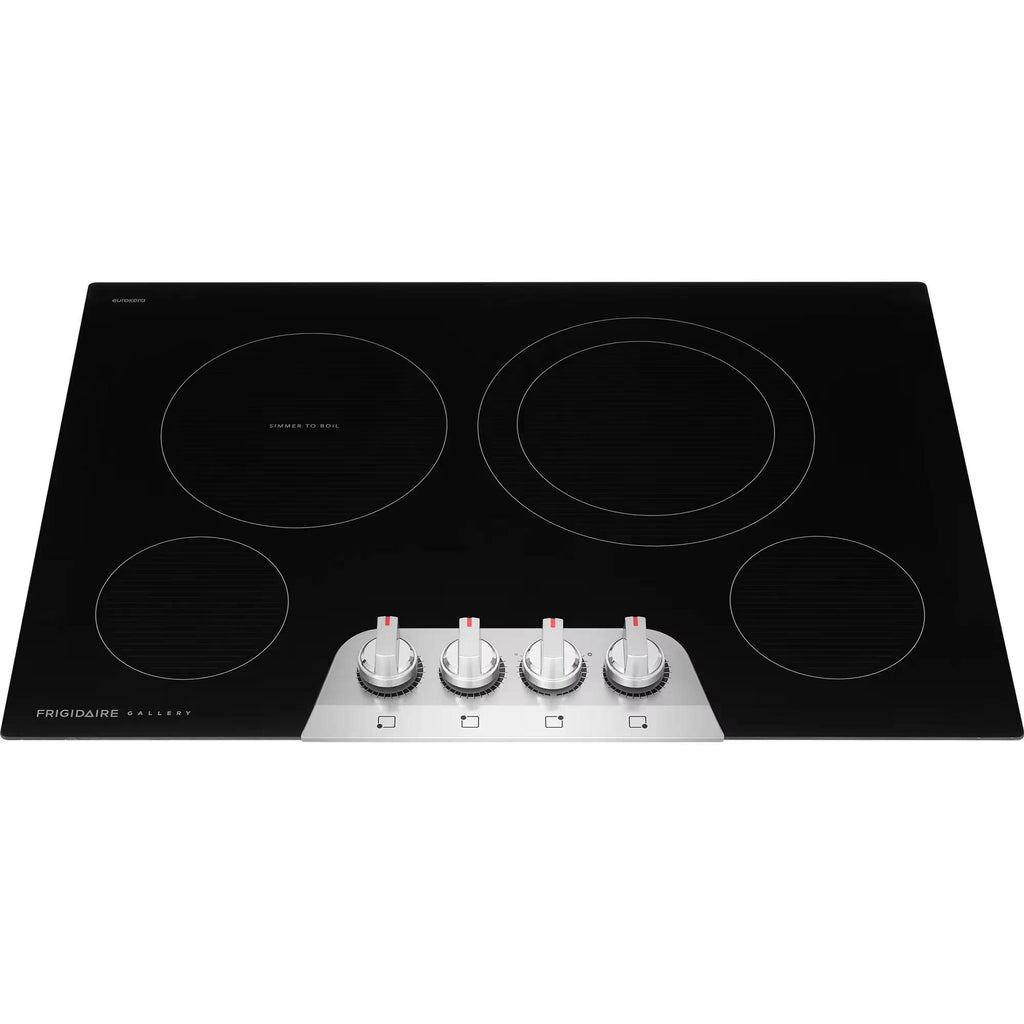

The Frigidaire Gallery 30" Electric Cooktop delivers powerful, flexible cooking performance in a sleek smooth-top design. Featuring expandable elements, including a dual 9"/12" element and a powerful 3,200-watt burner, it easily accommodates cookware of various sizes while providing precise heat control. Front-mounted controls offer convenient access, and the streamlined profile integrates seamlessly into modern kitchens.
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Right Front Element Burner: 1200 Watts
• Right Rear Element Burner (Small): 1800 Watts
• Right Rear Element Burner (Large): 3000 Watts
• Left Front Element Burner: 1200 Watts
• Left Rear Element Burner: 3200 Watts
• Right Rear Element Burner (Small): 1800 Watts
• Right Rear Element Burner (Large): 3000 Watts
• Left Front Element Burner: 1200 Watts
• Left Rear Element Burner: 3200 Watts
Burner/Element Size
• Right Front Element Burner Size: 6"
• Right Rear Element Burner Size (Small): 9"
• Right Rear Element Burner Size (Large): 12"
• Left Front Element Burner Size: 6"
• Left Rear Element Burner Size: 9"
• Right Rear Element Burner Size (Small): 9"
• Right Rear Element Burner Size (Large): 12"
• Left Front Element Burner Size: 6"
• Left Rear Element Burner Size: 9"
Elements
Smoothtop
Features
Additional Information
Power Supply Connection Location: Right Center
Electrical Information
Information
• Amps @ 240 Volts: 35.8 Amps
• Connected Load @ 240V: 8.6 kW
• Minimum Circuit Required: 40 Amps
• Voltage Rating: 240 V
• Connected Load @ 240V: 8.6 kW
• Minimum Circuit Required: 40 Amps
• Voltage Rating: 240 V
Certifications and Approvals
ADA Compliant
Yes
Information
CSA, UL
Dimensions
Class Width
30"
Width
30.63 inch(es) / 77.79 cm
Height
2.63 inch(es) / 6.67 cm
Depth
21.37 inch(es) / 54.29 cm
Weight
31 lb(s) / 14.06 kg
Additional Dimensions
• Cutout Height: 5"
• Minimum Cutout Width: 28 1/2"
• Minimum Cutout Depth: 19 5/8"
• Maximum Cutout Width: 29 7/8"
• Maximum Cutout Depth: 20 1/2"
• Minimum Cutout Width: 28 1/2"
• Minimum Cutout Depth: 19 5/8"
• Maximum Cutout Width: 29 7/8"
• Maximum Cutout Depth: 20 1/2"
Warranty
Warranty
Warranty - Labor: 1 Year
