Features

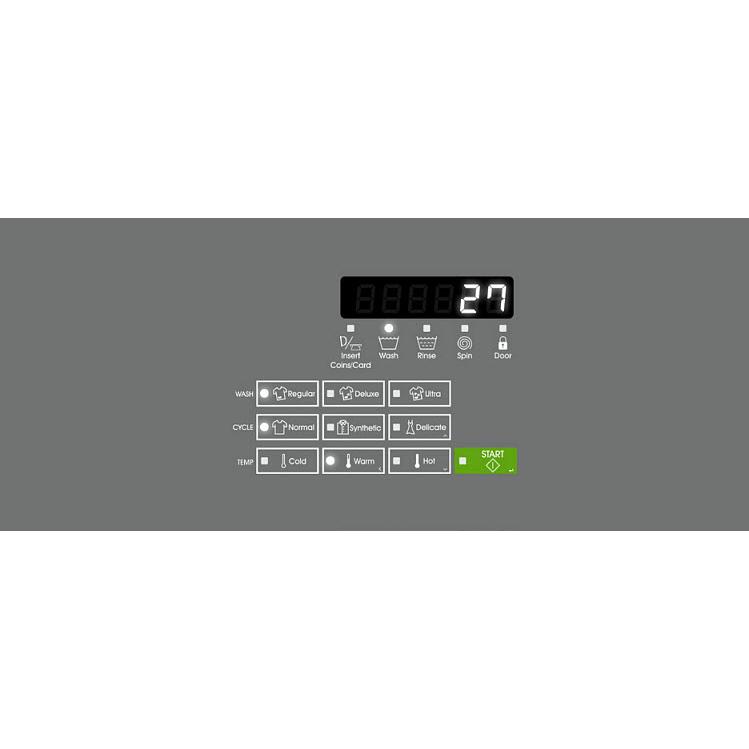

QUANTUM GOLD CONTROL
The Quantum® Gold Pro control delivers a truly premium experience to residents. From intuitive soft touch buttons that walk them through cycle options to multiple actuations (coin, card, mobile) for payment flexibility, this control gives residents the wash and dry options they want, and the revenue potential managers desire
Specifications
General
Coin Box Included
No
Type
Multi-Housing
Capacity
22 lb
Cylinder Volume
3.42 Cu. Ft.
Motor
0.9 hp
Maximum Speed
1200 rpm
G-Force
440 g
Color
White
Wash Cycles
• Normal
• Synthetic
• Delicate
• Synthetic
• Delicate
Wash Basket
Stainless Steel
Water Consumption
Per Cycle - g (liter): 13.68 (51.8)
Features
Technologies
• Wash Alert™ capability
• Revolutionary balancing technology
• Quantum® Gold Pro control
• Revolutionary balancing technology
• Quantum® Gold Pro control
Digital Temperature Display
Yes
Additional Information
• Prep for coin
• Water temperature: Cold, Warm, Hot
• Water Pressure - p.s.i. (bar): 20-120 (1.4/8.3)
• Integrated meter case
• Extra-wide 15.5? door opening and 180º door swing
• Rugged suspension system
• Easy-to-read digital display
• Large capacity meter case standard
• Multi-level vend pricing
• Individual cycle modifier keys
• Four-compartment soap dispenser
• Water temperature: Cold, Warm, Hot
• Water Pressure - p.s.i. (bar): 20-120 (1.4/8.3)
• Integrated meter case
• Extra-wide 15.5? door opening and 180º door swing
• Rugged suspension system
• Easy-to-read digital display
• Large capacity meter case standard
• Multi-level vend pricing
• Individual cycle modifier keys
• Four-compartment soap dispenser
Electrical Information
Information
120/60/1 - 15 Amp
Certifications and Approvals
Energy Star Certified
Yes
Information
• ADA
• cULus
• cULus
Dimensions
Width
26.87 inch(es) / 68.26 cm
Height
44.34 inch(es) / 112.62 cm
Depth
27.73 inch(es) / 70.43 cm
Weight
259.99 lb(s) / 117.93 kg
Additional Dimensions
• Floor to door opening -in (mm): 14.6 (371)
• Edoor swing - in (mm): 24 (610)
• Edoor swing - in (mm): 24 (610)
Shipping Dimensions
Width
34 inch(es) / 86.36 cm
Height
44.5 inch(es) / 113.03 cm
Depth
30 inch(es) / 76.2 cm
Weight
270 lb(s) / 122.47 kg
