Features

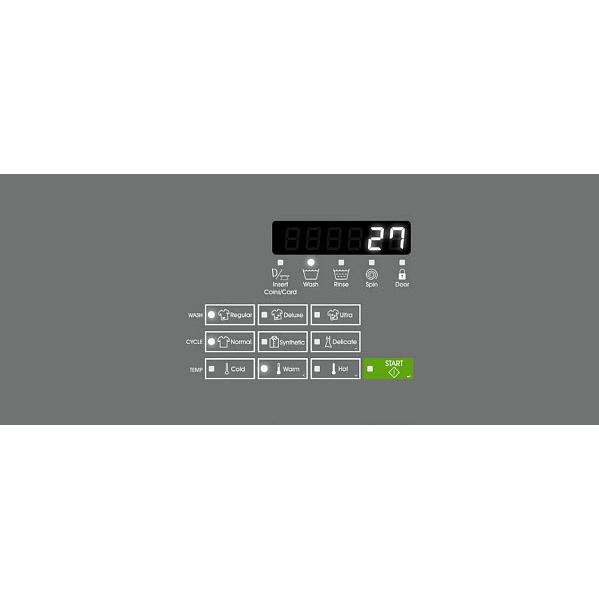

QUANTUM GOLD CONTROL
The Quantum® Gold Pro control delivers a truly premium experience to residents. From intuitive soft touch buttons that walk them through cycle options to multiple actuations (coin, card, mobile) for payment flexibility, this control gives residents the wash and dry options they want, and the revenue potential managers desire
Specifications
General
Coin Box Included
No
Type
Multi-Housing
Capacity
22 lb
Cylinder Volume
3.42 Cu. Ft.
Motor
0.9 hp
Maximum Speed
1200 rpm
G-Force
440 g
Color
White
Wash Cycles
• Normal
• Perm Press
• Delicates/Bulky
• Perm Press
• Delicates/Bulky
Wash Basket
Stainless Steel
Water Consumption
Per Cycle - g (liters): 13.68 (51.8)
Features
Technologies
• Quantum® Gold Pro Control
• Rugged suspension system
• Revolutionary balancing technology
• Wash Alert™ capability
• Rugged suspension system
• Revolutionary balancing technology
• Wash Alert™ capability
Digital Temperature Display
Yes
Additional Information
• Prepared for Card
• Easy-to-read digital display
• Large capacity meter case standard
• Touch pad control with sound annunciator
• Multi-level vend pricing
• Individual cycle modifier keys
• Four-compartment soap dispenser
• Water Pressure - p.s.i. (bar): 20-120 (1.4/8.3)
• Water Temperature: Hot, Warm, Cold
• Drain: Pump
• Easy-to-read digital display
• Large capacity meter case standard
• Touch pad control with sound annunciator
• Multi-level vend pricing
• Individual cycle modifier keys
• Four-compartment soap dispenser
• Water Pressure - p.s.i. (bar): 20-120 (1.4/8.3)
• Water Temperature: Hot, Warm, Cold
• Drain: Pump
Electrical Information
Information
120/60/1 - 15 Amp
Certifications and Approvals
Energy Star Certified
Yes
Information
cULus
Dimensions
Width
26.87 inch(es) / 68.26 cm
Height
43.87 inch(es) / 111.44 cm
Depth
27.73 inch(es) / 70.43 cm
Weight
259.99 lb(s) / 117.93 kg
Shipping Dimensions
Width
34 inch(es) / 86.36 cm
Height
44.5 inch(es) / 113.03 cm
Depth
30 inch(es) / 76.2 cm
Weight
270 lb(s) / 122.47 kg
