Features
E-MECH CONTROL

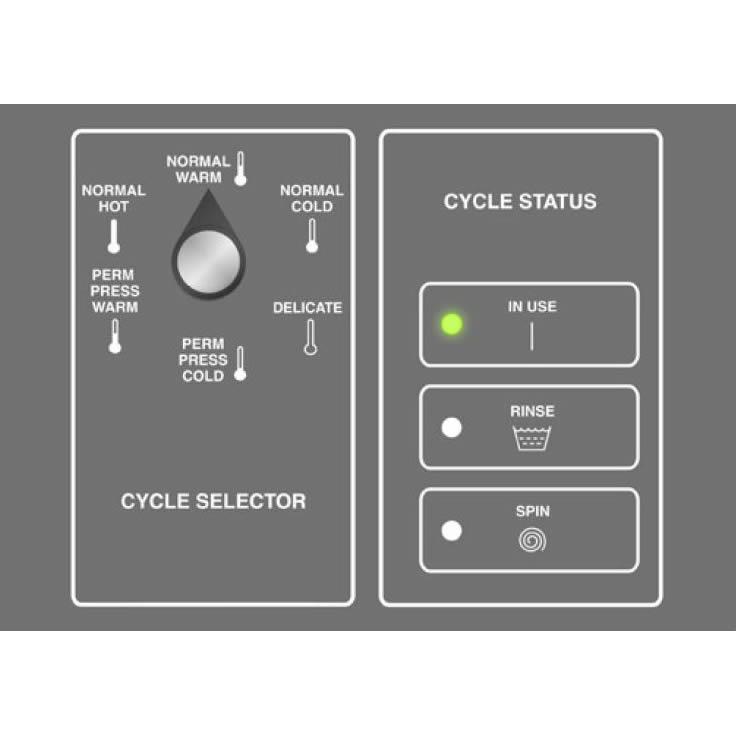

The E-Mech Control features an intuitive design offering users simple water-temperature and fabric selections, while using cue lights to monitor progress through the wash cycle.
Specifications
General
Type
On-Premises
Capacity
14 lb
Cylinder Volume
3.19 Cu. Ft.
Motor
0.5 hp
Maximum Speed
710 rpm
G-Force
150 g
Color
White
Manufacturer Color
White
Wash Cycles
• Normal Hot
• Normal Warm
• Normal Cold
• Delicate
• Perm Press Warm
• Perm Press Cold
• Normal Warm
• Normal Cold
• Delicate
• Perm Press Warm
• Perm Press Cold
Wash Basket
Stainless Steel
Water Consumption
• Water consumption per cycle - g (l): 28.07 (106)
• IWF (water factor): 8.8
• Water pressure - PSI (bar): 20-120 (1.4/8.3)
• IWF (water factor): 8.8
• Water pressure - PSI (bar): 20-120 (1.4/8.3)
Features
Technologies
E-Mech Control
Additional Information
• Rear controls
• Multi-cycle controls
• IMEF (modified energy factor): 1.35
• Water temperatures: 3
• Cycle indicator lights
• Multi-cycle controls
• IMEF (modified energy factor): 1.35
• Water temperatures: 3
• Cycle indicator lights
Electrical Information
Information
• 120 Volts
• 60 Hz
• 1 Ph
• 60 Hz
• 1 Ph
Certifications and Approvals
Energy Star Certified
No
Dimensions
Width
25.63 inch(es) / 65.1 cm
Height
43 inch(es) / 109.22 cm
Depth
28 inch(es) / 71.12 cm
Weight
206 lb(s) / 93.44 kg
Shipping Dimensions
Width
28 inch(es) / 71.12 cm
Height
45 inch(es) / 114.3 cm
Depth
30 inch(es) / 76.2 cm
Weight
217.99 lb(s) / 98.88 kg
