Features

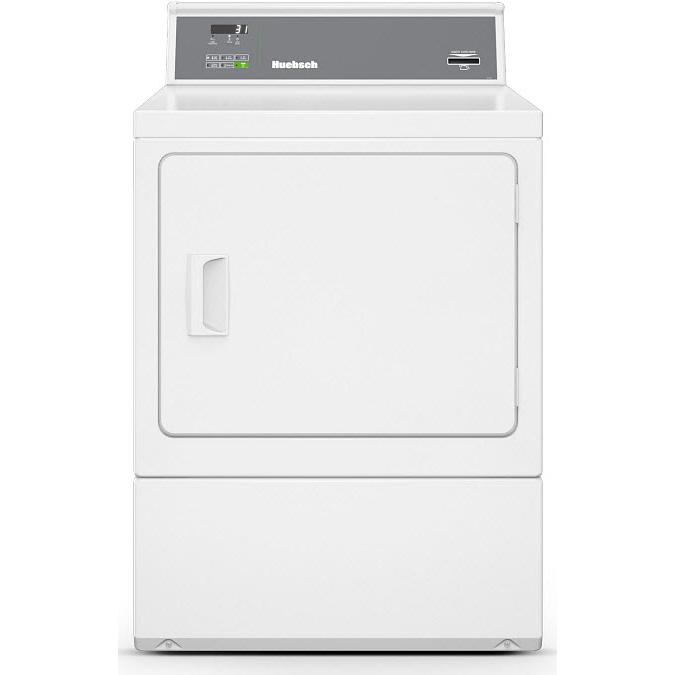

QUANTUM GOLD PRO

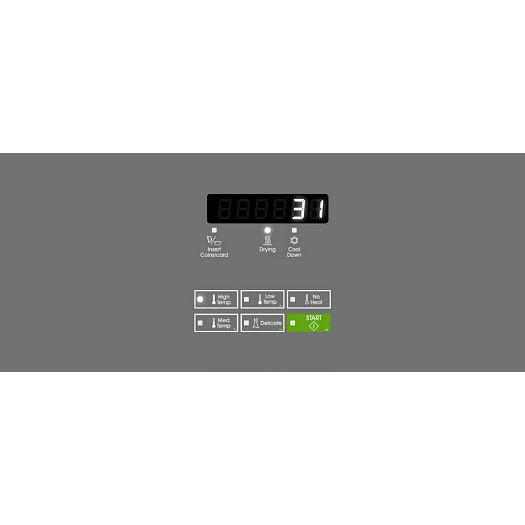

The Quantum® Gold Pro control delivers a truly premium experience to residents. From intuitive soft touch buttons that walk them through cycle options to multiple actuations (coin, card, mobile) for payment flexibility, this control gives residents the wash and dry options they want, and the revenue potential managers desire.
Specifications
General
Coin Box Included
No
Type
Multi-Housing
Fuel Type
Gas
Color
White
Cylinder Volume
7.0 cu. ft.
Capacity
17.64 lb(s) / 8.0 kg
Airflow
220 CFM
Drum
Galvanized
Features
Technologies
• Quantum® Gold Pro control
• Quiet, efficient blower system
• Quiet, efficient blower system
Digital Temperature Display
Yes
Additional Information
• Prep for card
• Integrated meter case
• Industry’s largest door opening 2.06 sq. ft. (1914 cm²)
• Door is reversible for installation flexibility
• 100% serviceable from the front
• Space-saving narrow cabinet 26.875" (683 mm)
• Upfront lint filter easy to clean and secured
• Durable galvanized steel cylinder
• Large capacity meter case standard
• Integrated meter case
• Industry’s largest door opening 2.06 sq. ft. (1914 cm²)
• Door is reversible for installation flexibility
• 100% serviceable from the front
• Space-saving narrow cabinet 26.875" (683 mm)
• Upfront lint filter easy to clean and secured
• Durable galvanized steel cylinder
• Large capacity meter case standard
Electrical Information
Information
120/60/1-15 amp
Certifications and Approvals
Information
cCSAus
Dimensions
Width
26.87 inch(es) / 68.26 cm
Height
43 inch(es) / 109.22 cm
Depth
28 inch(es) / 71.12 cm
Weight
150 lb(s) / 68.04 kg
Additional Dimensions
• Floor to door opening -in (mm): 15.44 (392)
• Door swing - in (mm): 23.5 (597)
• Door swing - in (mm): 23.5 (597)
Shipping Dimensions
Width
30.5 inch(es) / 77.47 cm
Height
45 inch(es) / 114.3 cm
Depth
29.5 inch(es) / 74.93 cm
Weight
161 lb(s) / 73.03 kg
