Features

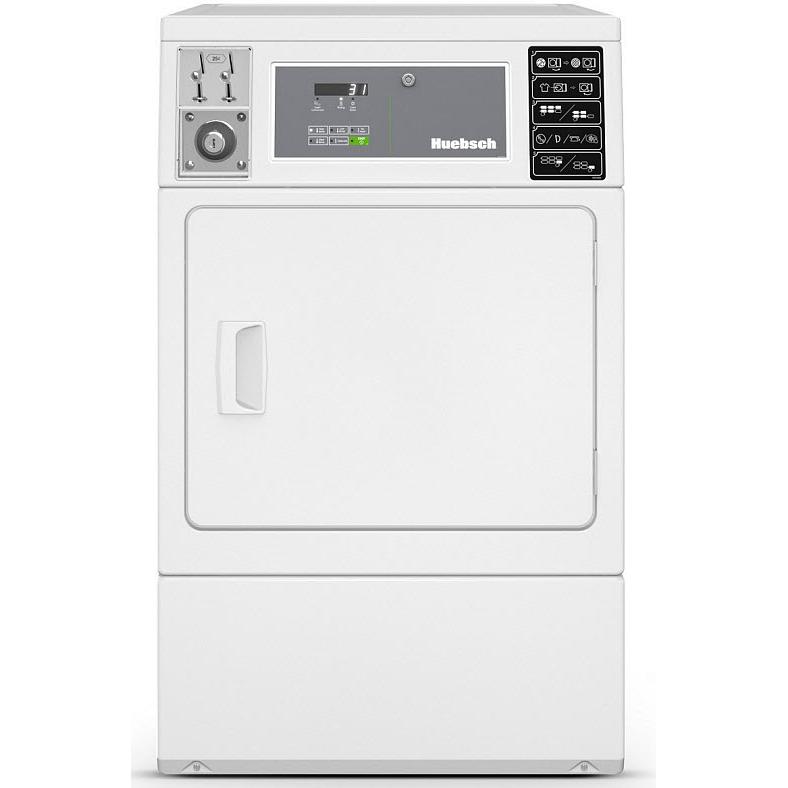

QUANTUM GOLD PRO
The Quantum® Gold Pro control delivers a truly premium experience to residents. From intuitive soft touch buttons that walk them through cycle options to multiple actuations (coin, card, mobile) for payment flexibility, this control gives residents the wash and dry options they want, and the revenue potential managers desire.
Specifications
General
Coin Box Included
No
Type
Multi-Housing
Fuel Type
Electric
Color
White
Cylinder Volume
7.0 cu. ft.
Capacity
18.08 lb(s) / 8.2 kg
Airflow
220 CFM
Dry Cycles
• High
• Medium
• Low
• Delicates
• No Heat
• Medium
• Low
• Delicates
• No Heat
Drum
Galvanized
Features
Technologies

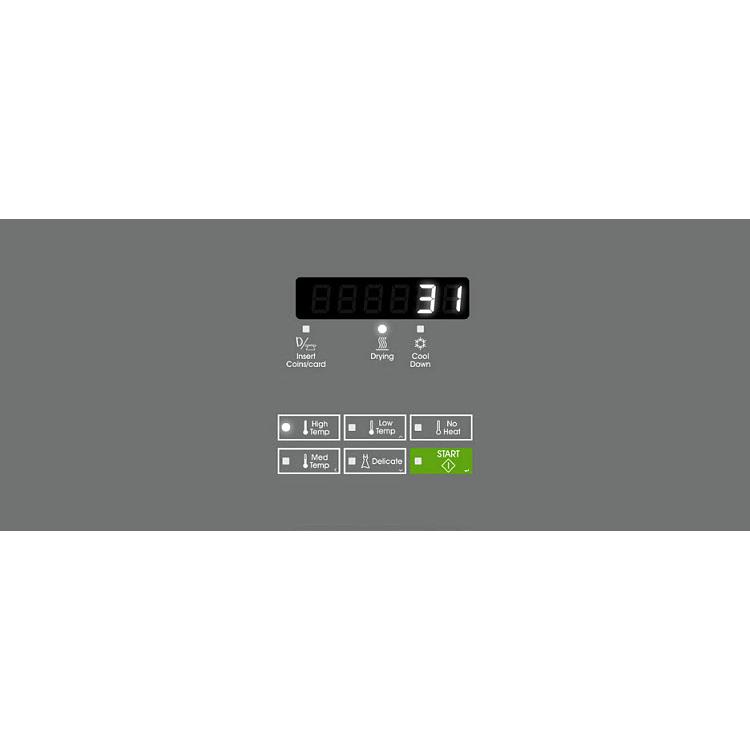

• Quantum Gold Pro Control
• Quiet, efficient blower system
• Quiet, efficient blower system
Digital Temperature Display
Yes
Additional Information
• Prep for coin
• 0.33 HP
• Integrated meter case
• Industry’s largest door opening 2.06 sq. ft. (1914 cm²)
• Door is reversible for installation flexibility
• 100% serviceable from the front
• Upfront lint filter easy to clean and secured
• Large capacity meter case standard
• 0.33 HP
• Integrated meter case
• Industry’s largest door opening 2.06 sq. ft. (1914 cm²)
• Door is reversible for installation flexibility
• 100% serviceable from the front
• Upfront lint filter easy to clean and secured
• Large capacity meter case standard
Electrical Information
Information
• 120/240/60/1-30 amp
• 120/208/60/1-30 amp
• 120/208/60/1-30 amp
Certifications and Approvals
Information
cULus
Dimensions
Width
26.87 inch(es) / 68.26 cm
Height
44.34 inch(es) / 112.62 cm
Depth
28 inch(es) / 71.12 cm
Weight
150 lb(s) / 68.04 kg
Additional Dimensions
• Floor to Door Opening in (mm): 15.44 (392)
• Door Swing in (mm): 23.5 (597)
• Door Swing in (mm): 23.5 (597)
Shipping Dimensions
Width
30.5 inch(es) / 77.47 cm
Height
45 inch(es) / 114.3 cm
Depth
29.5 inch(es) / 74.93 cm
Weight
161 lb(s) / 73.03 kg
