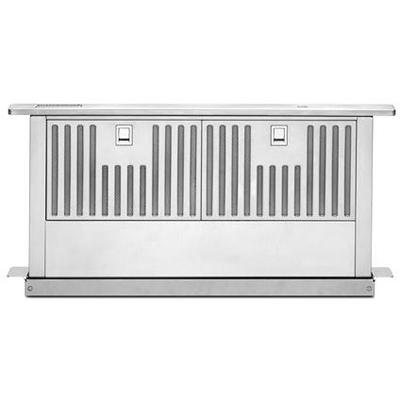

Description
This 30-inch retractable downdraft vent rises 13.5 inches to help filter steam from tall stockpots, and remains flush with the cooking surface when not in use. The 585 CFM Motor Class* ventilation system has the power to provide effective venting for most cooktops or ranges. The system is reversible to help fit in the cabinet space under the vent. Performance varies based on installation. Resources available at AHAM.org
Specifications
General
Blower Included
Yes
Airflow
585 CFM
Style
Downdraft
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Countertop
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Rectangular or Round
Speeds
4
Additional Information
• Sones with High Speed: 11
• The 14-inch retractable vent height rises further above the cooktop to help capture steam from tall stockpots and other cookware
• Dishwasher-safe grease filters
• 4-Speed slide control
• Rated for Cooking Surfaces Up to 65K BTUs
• Reversible Motor Box
• Vented Sides and Bottom
• Auto On
• The 14-inch retractable vent height rises further above the cooktop to help capture steam from tall stockpots and other cookware
• Dishwasher-safe grease filters
• 4-Speed slide control
• Rated for Cooking Surfaces Up to 65K BTUs
• Reversible Motor Box
• Vented Sides and Bottom
• Auto On
Electrical Information
Information
120
Certifications and Approvals
Hvi Certified
No
Energy Star Certified
No
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
28.5 inch(es) / 72.39 cm
Depth
12.13 inch(es) / 30.8 cm
Shipping Dimensions
Width
35 inch(es) / 88.9 cm
Height
21 inch(es) / 53.34 cm
Depth
33.5 inch(es) / 85.09 cm
Weight
92.99 lb(s) / 42.18 kg
Warranty
Warranty
1 Year
UPC
UPC#
883049222417
