Description

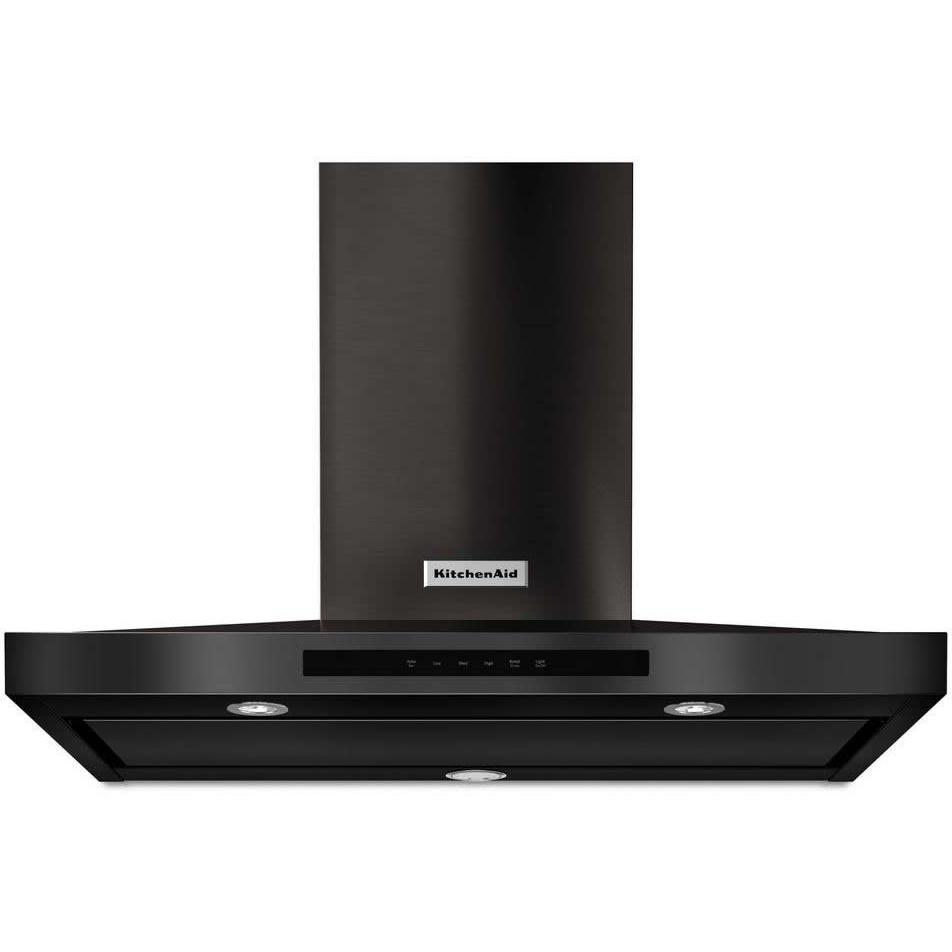

The power of this 36-inch vent hood effectively vents most cooking surfaces. One of the premium features of this vent hood is auto speed sensing which ensures that the ventilation system is working efficiently by automatically changing the speed of the fan to best match the dish you are preparing. The sharp, glass-touch display showcases easy-to-use touch controls.
Features
600 CFM/65K BTU THRESHOLD
Allows installation over any KitchenAid regular 36- or 30-inch range or cooktop, and some commercial-style cooking surfaces with outputs up to 65K BTU.
PERIMETER VENTILATION
Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.
AUTO SPEED SETTING
Takes the guesswork out of protecting cabinets from steam, grease, and moisture by automatically adjusting fan speed to ventilation needs depending on the heat being produced.
LED TASK LIGHTS
Provide extra lighting over the cooking surface to help in the cooking process.
HALOGEN NIGHT LIGHTS
Enhances the style of the ventilation system by providing soft, accent lighting in the kitchen.
3-SPEED ELECTRONIC GLASS TOUCH CONTROL WITH BOOST FUNCTION (10 MIN.)
Provides electronic operation with visual feedback on settings and selections. Enhances performance when using high-temperature cooking techniques by providing a timed, short burst of high-speed ventilation to effectively filter steam, grease, and odors from the air.
WHISPER QUIET® SYSTEM @ 49 DBA (1.5 SONES) AT LOW SPEED
Ensures that the ventilation system operates at a quiet level so it can be used while entertaining. At maximum speed, sound level is 65 dBA (5.4 sones).
EASY IN-LINE CONVERSION
Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
DISHWASHER SAFE COMMERCIAL-STYLE BAFFLE FILTERS
Provide proper filtration of grease to help prevent damage to ceilings and countertops and feature commercial-style construction for long life.
Specifications
General
Blower Included
Yes
Airflow
585 CFM
Style
Chimney
Color
Black Stainless
Manufacturer Color
Black Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Ducting Information
6" Duct
Speeds
4 Speeds with LCD
Additional Information
• Perimetric Ventilation
• Auto Speed Setting
• LED Lighting with Ambient Lighting
• Capacitative Touch
• Baffle Filters
• Sones with High Speed: 5.5
• Auto Speed Setting
• LED Lighting with Ambient Lighting
• Capacitative Touch
• Baffle Filters
• Sones with High Speed: 5.5
Electrical Information
Information
120 V
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
24.63 inch(es) / 62.55 cm
Depth
19.69 inch(es) / 50.01 cm
Weight
48.5 lb(s) / 22 kg
Shipping Dimensions
Width
40.25 inch(es) / 102.24 cm
Height
18 inch(es) / 45.72 cm
Depth
26.5 inch(es) / 67.31 cm
Weight
60.01 lb(s) / 27.22 kg
Warranty
Warranty
Limited 1 year parts and labor.
UPC
UPC#
883049484099
