Description

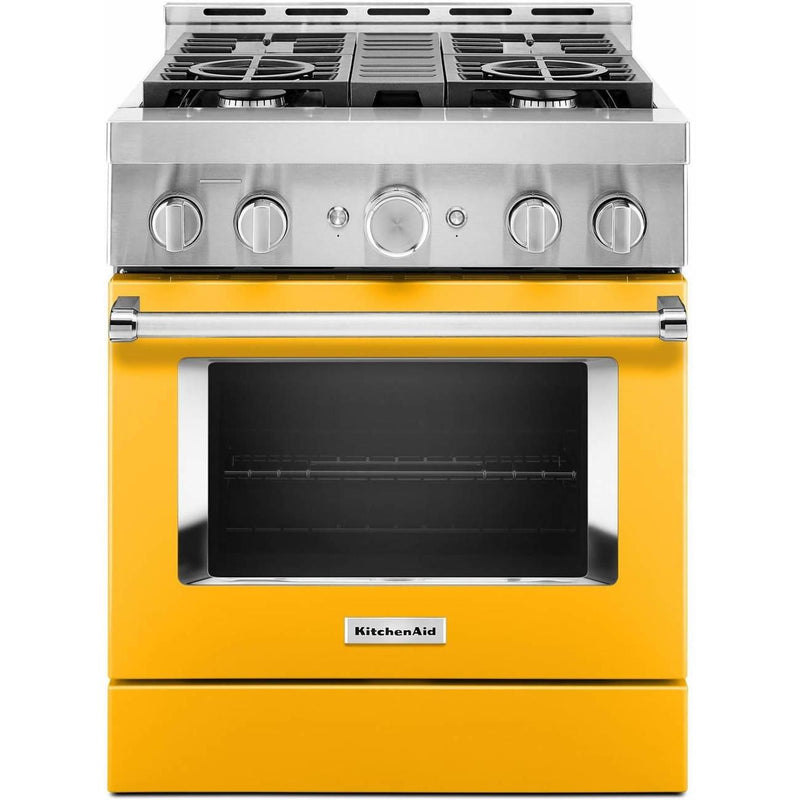

Empower your creativity with a 30-inch KitchenAid® Commercial Style Range with 4 burners. This gas range features two versatile 20,000 BTU Ultra Power™ Dual-Flame Burners with the power and precision needed to successfully sear, simmer, stir-fry and sauté. Even-Heat™ True Convection helps you achieve more consistent baking and roasting.
Features
5,000 BTU SIMMER AND MELT BURNER
with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
DUAL-CONCENTRIC OVEN KNOB
Provides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.
EASYCONVECT™ CONVERSION SYSTEM
Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
EVEN-HEAT™ TRUE CONVECTION
Features a unique bow-tie design with heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.
SATINGLIDE™ ROLL-OUT EXTENSION RACK
Makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
THREE-LEVEL CONVERTIBLE GRATES
With removable inserts match the heat to your technique. Leave the insert level for high-heat searing and saute´ing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.
KITCHENAID® HANDLE MEDALLION KIT (SOLD SEPARATELY)
Lets you change the color of your range handle medallions to add a custom accent. Available in Silver, Dark Blue, Bronze, Black, Copper, Red, New Gold, and Mascarpone. Each kit includes two medallions and a 1/8" hex allen wrench for easy replacement (sold separately)
Specifications
General
Series Name
Commercial Style
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Yellow
Manufacturer Color
Yellow Pepper
Cooktop
Burners/Elements
4
Burners/Elements Output
• (1x) Center Rear: 5000 BTU Simmer and Melt Burner
• (2x) Right Front: 20,000 BTU Ultra Power™ Dual-Flame Burners
• (1x) Right Rear: 15,000 BTU Burner
• (2x) Right Front: 20,000 BTU Ultra Power™ Dual-Flame Burners
• (1x) Right Rear: 15,000 BTU Burner
Burners
Sealed
Oven
Capacity (cu. ft.)
4.1 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake
• Convection Roast
• Convection Roast
Features
Technologies
• Even-Heat™ True Convection
• Ultra Power™ Dual-Flame Burners
• SatinGlide™ Roll-Out Extension Rack
• EasyConvect™ Conversion System
• Amazon Alexa, Android, Google Assistant, iOS
• WiFi, App, Remote Access, Voice Controlled
• Flame-Sensing™ Re-ignition
• Ultra Power™ Dual-Flame Burners
• SatinGlide™ Roll-Out Extension Rack
• EasyConvect™ Conversion System
• Amazon Alexa, Android, Google Assistant, iOS
• WiFi, App, Remote Access, Voice Controlled
• Flame-Sensing™ Re-ignition
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Automatic Convection Conversion Temperature Adjust
• Hidden Bake Element
• Grate Details: Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates, Individual
• Porcelain Coated Steel Surface
• Auto Re-ignition
• 4 Grates
• Door Removable
• Dual-Concentric Oven Knob
• Three-Level Convertible Grates
• Hidden Bake Element
• Grate Details: Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates, Individual
• Porcelain Coated Steel Surface
• Auto Re-ignition
• 4 Grates
• Door Removable
• Dual-Concentric Oven Knob
• Three-Level Convertible Grates
Accessories
Included
LP Conversion Kit
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
27.75 inch(es) / 70.49 cm
Depth (Including Handles)
30.25 inch(es) / 76.84 cm
Weight
358.01 lb(s) / 162.39 kg
Additional Dimensions
• Cutout Depth: 24"
• Cutout Height: 36"
• Cutout Width: 30"
• Cutout Height: 36"
• Cutout Width: 30"
Shipping Dimensions
Width
35.81 inch(es) / 90.96 cm
Height
47.5 inch(es) / 120.65 cm
Depth
35.5 inch(es) / 90.17 cm
Weight
408.01 lb(s) / 185.07 kg
Warranty
Warranty
• First Year Limited Warranty (Parts and Labor)
• Second Through Fifth Year Limited Warranty (Certain Component Parts Only - Labor Not Included)
• Second Through Fifth Year Limited Warranty (Certain Component Parts Only - Labor Not Included)
UPC
UPC#
883049529202
